Control Unit

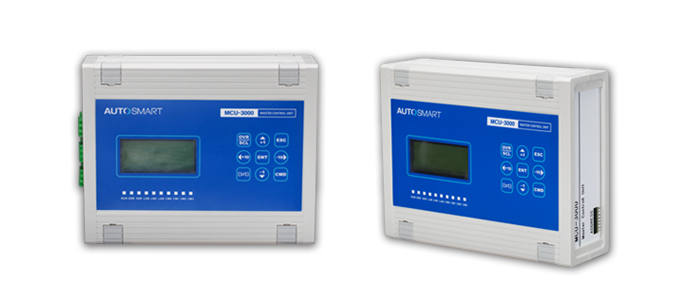

MCU-3000

Master Control Unit

MCU-3000 is a high performance master control unit that can be used for construction of an integrated system being applied to a medium/large building. It synthetically controls diverse low level control units (DDC, LCU, etc.) and provides a communication interface function that provides information related to high level MMI software. It also carries out direct control and management through the imbedded LCD and keypad.

Download

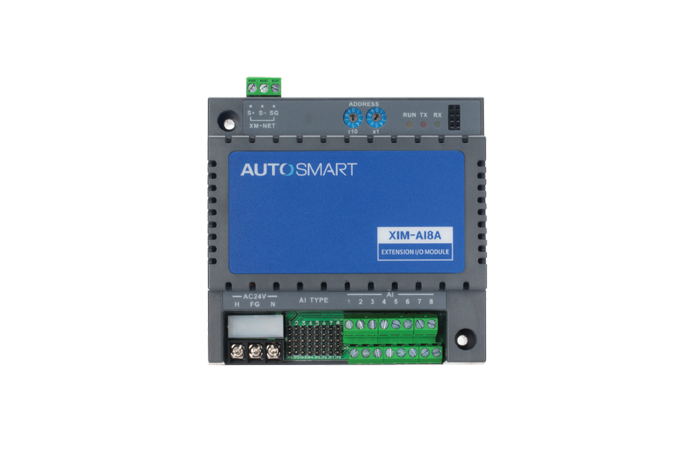

XIM-AI8A

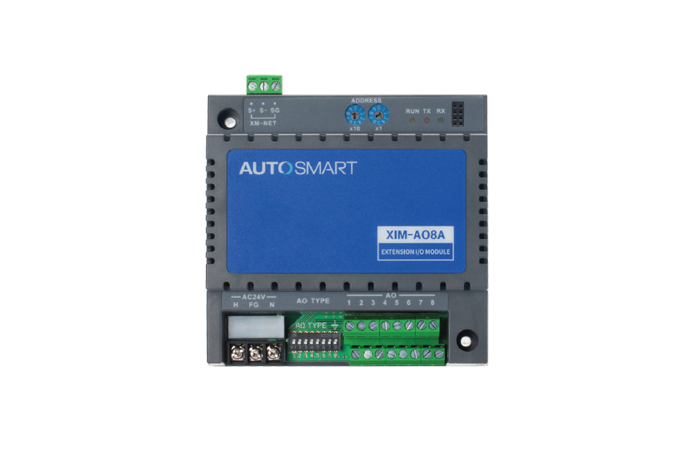

XIM-AO8A

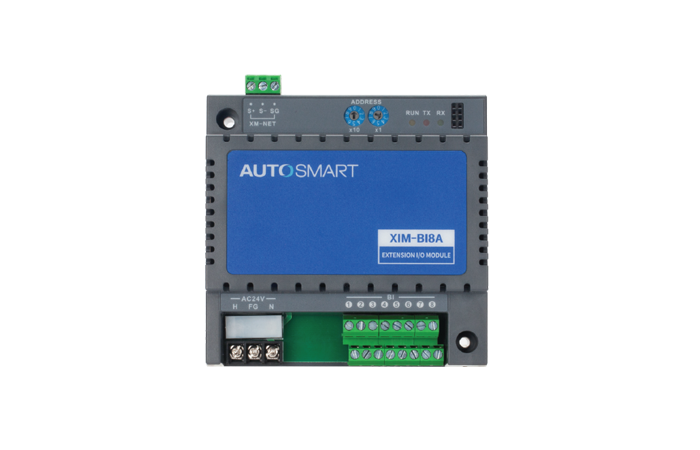

XIM-BI8A

XIM-BO8A

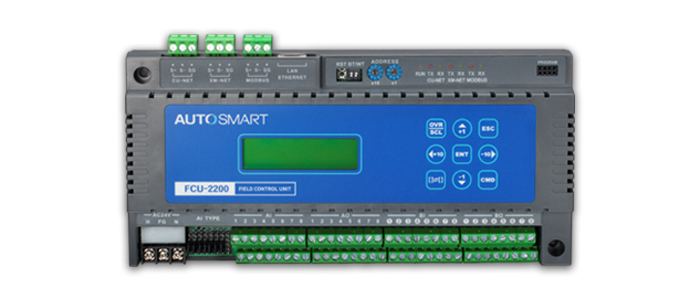

FCU-2200

Field Control Unit

The FCU-2200 is a high performance Level as 32bit Direct Digital Controller(DDC), directed to an open-oriented system, and can effectively accommodate changes in the building automatic control systems that require high reliability and easy system maintenance capabilities.
Built-in 32-channel input and output ports(AI: 8 / BI: 8 / AO: 8 / BO: 8) and expansion modules(XIM series) can be expanded up to 160 inputs and outputs through the connection port. Through a function block, like Flow-chart builder Is easy to control and programming logic 100 enables optimal control program written for a variety of equipment, and It can directly Control the functions(setup, control, management, etc) of DDC in the field through the operation key.

Download

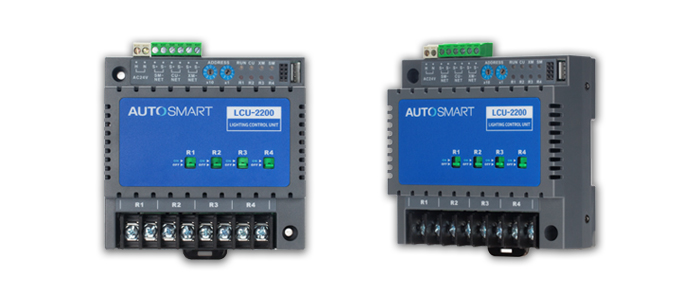

LCU-2200

Light Control Unit

LCU-2200 is a independent wired/wireless lighting control unit that can arrange different types of lightings inside and outside of a building with ease and convenience by operating on its own or via Autosmart. LCU-2200 can control lighting latch relay, program switch, human body sensor. It can be operated either wired or wirelessly depending on circumstances of the installation spot. LCU-2200 can extend to 128 circuits using loaded 4 relay and 31 extension modules. Also it is able to individual control, group control, pattern control through 32 different program swtiches. Each setting information is permenantly stored in a flash memory regardless host system and can operate on its own.

Download
